Pneumatic Clamping Rip Saw Machine Delivers Straight Precise Wood Cuts

VIDEO DESCRIPTION

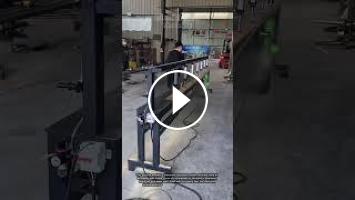

This machine employs a pneumatic hold-down system mounted along an elongated steel frame. A row of compressed-air cylinders is positioned above the worktable, each fitted with a pressure foot that descends simultaneously when the operator actuates the control valve. The cylinders press the timber plank firmly against the bed and fence, eliminating vibration and lateral drift. A motor-driven circular saw blade, enclosed by a green guard, then cuts along the plank edge as it is fed through. An air regulator and filter unit stabilizes line pressure, while a compact electrical box manages power and safety switching.

The primary benefit of this system is consistent cutting quality. Because every cylinder applies uniform downward force, the workpiece remains stable from start to finish, producing straight edges with repeatable dimensions across batches. Productivity increases as clamping is performed instantly by air pressure rather than manual clamps, allowing the operator to load, secure, and process boards in rapid succession. Time efficiency improves further since setup adjustments are minimal and rework is reduced. Operator fatigue and injury risk also decrease, because hands remain clear of the blade during cutting, resulting in a safer and more economical production workflow.

MACHINE SPECIFICATIONS (estimated from visual)
Machine Type: Pneumatic hold-down long-board edge/rip sawing machine
Frame Construction: Welded heavy-duty steel frame with dark powder-coated finish
Working Length: Approximately 4 to 6 meters
Clamping System: 7 to 8 pneumatic cylinders with adjustable pressure feet
Cutting Unit: Motor-driven circular saw blade with green protective guard
Air Supply: Compressed air line with pressure regulator and filter unit
Control System: Manual air valve with compact electrical switch box
Workpiece Material: Solid wood planks and timber boards
Operation Mode: Semi-automatic, single operator
Power Supply: Three-phase or single-phase electric motor (to be confirmed)
Suitable Applications: Edge trimming, straight ripping, and board squaring

50 HASHTAGS
#woodworking #woodworkingmachine #pneumaticclamp #ripsaw #circularsaw #edgetrimming #timbercutting #sawmill #woodshop #woodworkshop #carpentry #joinery #furnituremaking #woodmachinery #industrialmachine #pneumaticsystem #aircylinder #automation #manufacturing #factorylife #woodprocessing #lumbercutting #precisioncutting #straightedge #woodcutting #shopmachine #heavydutymachine #steelframe #productionline #workshoptools #diymachine #machinebuilder #woodengineering #cncwoodworking #industrialwoodworking #cuttingmachine #boardcutting #plankcutting #woodfabrication #furnitureindustry #machinedemo #workshopequipment #smartmanufacturing #efficiency #productivity #safetyfirst #woodwrench #woodwrenchworkshop #makersofinstagram #howitworks

SEO KEYWORDS
pneumatic clamping rip saw, wood edge cutting machine, long board sawing machine, pneumatic hold-down woodworking machine, air cylinder clamp saw, automatic timber cutting machine, straight line rip saw, woodworking machinery, plank edge trimming machine, industrial wood saw, semi-automatic wood cutting machine, pneumatic woodworking tools, lumber ripping machine, wood processing equipment, furniture factory machinery, precision wood cutting system, workshop automation, wood board squaring machine, how pneumatic clamps work, woodwrench workshop

PRACTICAL NOTES
1. Always check air pressure on the regulator before cutting; uneven pressure may cause weak clamping and board movement.
2. Drain moisture from the air filter regularly to protect the cylinders and prevent rust.
3. Inspect each pressure foot for wear to ensure the board is held evenly along its entire length.
4. Keep hands clear of the blade path and use the guard at all times, even though clamping reduces manual contact.
5. Use a sharp blade matched to the wood type to reduce burn marks and splintering.
6. Connect a dust extraction system, since the video shows visible sawdust that affects visibility and air quality.
7. Wear safety glasses, hearing protection, and a dust mask during operation.
8. Tidy air hoses and power cables, as loose cables on the floor are a trip hazard.
9. Feed the board at a steady speed for a smoother, straighter cut.
10. Lubricate moving parts and check frame bolts periodically to maintain alignment and accuracy.
