## 1. Job Overview

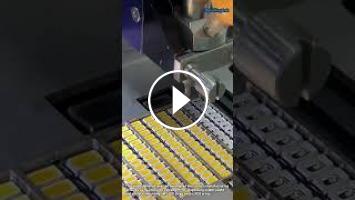

This video illustrates an automated surface-mount technology (SMT) assembly line operating in an electronics manufacturing facility. The primary task shown is high-precision solder paste dispensing and component alignment onto a panelized matrix of micro LED chips on a printed circuit board (PCB).

## 2. Materials & Equipment Used
- Automated SMT Liquid Dispenser & Placement Machine
- LED Chip Array PCB Panel
- High-Viscosity Solder Paste / Optical Encapsulant Gel
- Precision Micro-Metering Nozzles and Pneumatic Syringe Feeders
- Optical Alignment Camera / Vision Positioning System

## 3. Step-by-Step Procedure
1. Board Positioning: The PCB substrate panel is loaded onto the conveyor and locked firmly into place using precision mechanical clamps.
2. Vision Calibration: The vision system scans target fiducial marks on the board to align coordinates down to the micrometer level.
3. Liquid Dispensing: The pneumatic dispenser deposits uniform micro-droplets of solder paste or fluid onto designated solder pads across the LED matrix array.
4. Component Placement: The micro-nozzle aligns with high speed to position LED units onto the prepared pads prior to reflow soldering.
5. Inspection & Transfer: The automated optical inspection system verifies dispensing accuracy before releasing the panel to the next conveyor stage.

## 4. Importance of the Process
Precision dispensing and micro-placement are essential in modern electronics manufacturing to prevent electrical bridging, cold solder joints, or component misalignments. Automating this phase guarantees high production throughput, consistent quality control, low defect rates, and reliable performance of LED display panels and illumination systems.
