4 lasers. 4 light sensors. 4 relays. 4 electromagnetic solenoids.

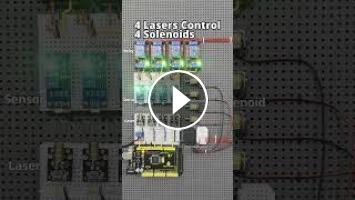

Part 2 of my laser target system project! Four laser beams are detected by LM393 light sensor modules, which activate four relay modules to control four 5V micro electromagnetic solenoids. This is another step toward building a laser target system with Arduino.

Components Used

LM393 LDR Light Sensor Module
https://s.click.aliexpress.com/e/_c3GuNWvn

KY-008 Laser Module
https://s.click.aliexpress.com/e/_c3k7E58h

5V Micro Electromagnetic Solenoid
https://s.click.aliexpress.com/e/_c3NRNB7P

Mini Solderless Breadboard
https://s.click.aliexpress.com/e/_c42M4sED

Hardware

Arduino Mega
4 × KY-008 Laser Modules
4 × LM393 LDR Light Sensor Modules
4 × 5V Relay Modules
4 × 5V Micro Electromagnetic Solenoids

Disclosure

Some of the links above are affiliate links. If you purchase through them, I may earn a small commission at no extra cost to you. Thank you for supporting my channel!

Opto, Optocoupler, Arduino, ArduinoMega, Light, Sensor, Laser, Solenoid, Relay, DIYElectronics, ArduinoProject, Electronics, Maker, Automation
